- Place of Origin: China
- Brand Name: HRJ
- Model Number: TLW-20

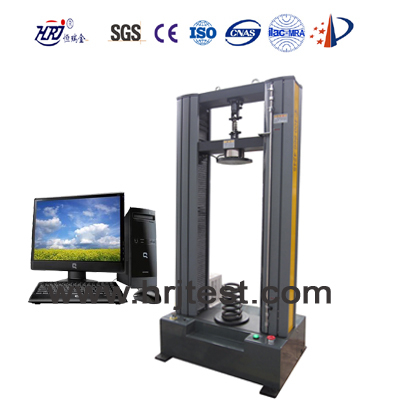

Introduction
1) Applicable to various springs to test mechanical properties such as tension and compression.
2)With precise automatic control and data acquisition system to realize full digitalization adjustment to data acquisition and control process.
- Place of Origin: China
- Brand Name: HRJ
- Model Number: TLW-20
Technical Specifications
1) Capacity 20KN
2) Grade/class Class 0.5
3) Loading measuring range 0.4%-100%FS
4) Loading accuracy ±0.25%
5) Load force resolution 1/±300000F.S
6) Deformation measuring range 0.2%-100%
7) Displacement speed control range 0.005-500mm/min
8) Effective test span (mm) 400
9) Stroke of cross beam(mm) 1100
10) Loading method Electric
11) Control method Computer automatically control
12) Working voltage 1ph, 220V±50Hz (good earth-connection)
