- Size: 2.5
- Place of Origin: china
- Brand Name: HRJ
- Model Number: WBZ-10
- Weight: 600.000 kg

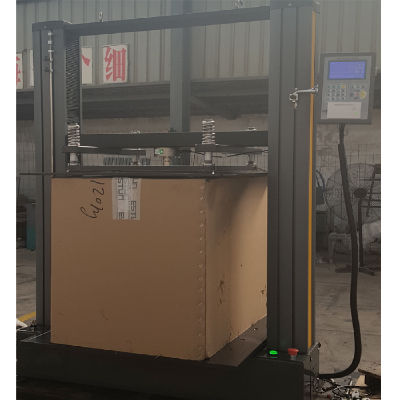

Introduction
1) Mainly used to detect compression strength of cartons, containers and other packaging structure, stacking test, in order to know the compressive strength and impact-resistant capacity of product.
2) With precise auto control and data acquisition system to realize full digitalization adjustment of data acquisition and control process, displaying test force, deformation, max. crush strength, max. test force.
- Size: 2.5
- Place of Origin: china
- Brand Name: HRJ
- Model Number: WBZ-10
- Weight: 600.000 kg
Specification
No. | Test Items | Technical Requirements |
1 | Capacity | 10kN |
2 | Precision level | Class 1 |
3 | Test force accuracy | Better than ±1% of indicated value |
4 | Measuring range | 0.4%-100% of the maximum test force |
5 | Beam displacement measurement | A resolution of 0.01 |
6 | Deformation accuracy | Better than ±1% |
7 | Speed range | 0.2-500mm/min |
8 | Span between columns | 900mm |
9 | Vertical test space | 1200mm |
10 | Platen size | 850mm *850mm |
11 | Max. Sample size | 800mm (L)*800mm (W)*1000mm (H) |
12 | Loading method | Electric loading |
13 | Control method | Digital controller with mini-printer |
14 | Working voltage | 1ph, 220V±50Hz (good earth-connection) |
