- Place of Origin: China
- Brand Name: HRJ
- Model Number: YES-2000D
1. Main Function
1) Adopting hydraulic loading, electronic measurement, digital display test force, peak, test speed, automatic data processing function, and can perform compression test for metallic and nonmetallic materials;
2) The hydraulic system is mainly controlled by delivery and return valve handles, easy for operation. Equipped with mini printer, it can print test results;

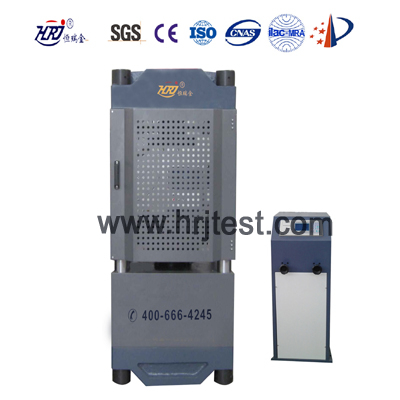

3) The main machine is composed of base, cylinder piston, upper and lower platen, columns, fixed beam, spherical pressure head and relative components. The test space is formed by upper and lower platens; the upper crossbeam is fixed and test space can be adjusted by increasing and reducing adjusting blocks;
4) With reserved interface to connect with computer for upgrading;
5) If equipped with other accessories, it can perform other tests for other materials.
- Place of Origin: China
- Brand Name: HRJ
- Model Number: YES-2000D
Technical Specifications
No. | Items | Spec. |
1 | Max. test force (kN) | 2000 |
2 | Load class | Class 0.5 |
3 | Measuring range of load (kN) | 1%-100%F.S |
4 | Relative error of indicating value of test force | ≤±1.0% |
5 | Resolution of test force (kN) | 0.1 |
6 | Max. compression space (mm) | 650mm |
7 | Size of upper platen (mm) | Ф300 |
8 | Size of lower platen (mm) | 400*400 |
9 | Span between two columns (mm) | 500*400 |
10 | Stroke of piston (mm) | 50 |
11 | Adjusting mode of test space | Adjusting block |
12 | Loading rate (kN/s) | 0-40 |
13 | Dimension of main machine (L*W*H) (mm) | 700*580*1700 |
14 | Dimension of oil source control cabinet (mm) | 560*450*1200 |
15 | Power (kw) | 1.5 |
16 | Power supply | 3 phase 380V±10%; 50Hz |
